產品介紹：
用途：
本產品具有卓越的耐高溫性能、耐潮濕性能、阻燃性能。特點：重量輕、體積小、柔軟。主要用于-65~260℃高低溫條件下電子設備、儀器儀表線路及其它精密電器裝置內部連接等。
Usage:
This product has excellent high temperature resistance, moisture resistance, flame retardant properties. Features: light weight, small size, soft. Mainly used for -65~260℃ high and low temperature conditions, electronic equipment, instruments and circuit and other precision electrical devices, such as internal connection.
立即咨詢
鍍鎳銅芯聚四氟乙烯絕緣電線電纜
Nickel plated copper core, PTFE insulated wire and cable for aerospace applications
技術規范 specification：GJB/773A/2A-2000

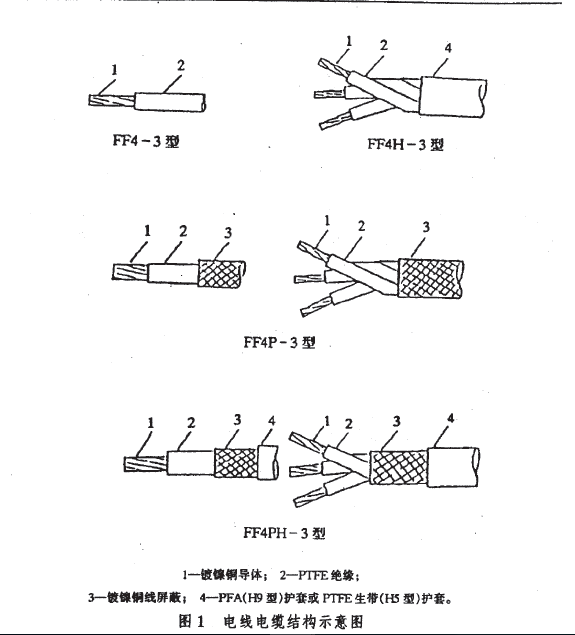

名稱：
FF4-3 鍍鎳銅芯PTFE絕緣電線電纜
Nickel plated copper core, PTFE insulated wire and cable
FF4P31-3 鍍鎳銅芯PTFE絕緣鍍鎳圓銅線編織屏蔽電線電纜
Nickel plated copper core PTFE insulated nickel plated round copper wire braid shielded wire and cable
FF4H9-3 鍍鎳銅芯PTFE絕緣PFA護套電線電纜
Nickel plated copper core PTFE insulated PFA sheathed wire and cable
FF4P31H9-3 鍍鎳銅芯PTFE絕緣鍍鎳圓銅線編織屏蔽PFA護套電線電纜
Nickel plated copper core PTFE insulated nickel plated round copper wire braided shield PFA sheathed wire and cable
FF4P33H9-3 鍍鎳銅芯PTFE絕緣鍍鎳圓銅線繞包屏蔽PFA護套電線電纜
Nickel plated copper core PTFE insulated nickel plated round copper wire wrapped shield PFA sheathed wire and cable
FF4H5-3 鍍鎳銅芯PTFE絕緣PTFE生帶護套電線電纜
Nickel plated copper core PTFE insulated PTFE sheathed wire and cable
FF4P31H5-3 鍍鎳銅芯PTFE絕緣鍍鎳圓銅線編織屏蔽PTFE生帶護套電線電纜
Nickel plated copper core PTFE insulated nickel plated round copper wire braided shield PTFE green belt sheath wire and cable
FF4P33H5-3 鍍鎳銅芯PTFE絕緣鍍鎳圓銅線繞包屏蔽PTFE生帶護套電線電纜
Nickel plated copper core PTFE insulated nickel plated round copper wire wrapped shield PTFE green belt sheath wire and cable
使用特性
額定電壓：交流600V；
額定溫度：260℃
使用環境溫度：-65℃。
阻燃性能: 不延然 （290±5）℃×15min，無冒煙現象。
Features:
Related voltage:AC 600V
Related temperatur:260℃
The lowest environment temperature:-65℃
Flame retardant features: do not extended （290±5）℃×15min ,no smoke
鍍鎳銅芯PTFE絕緣電線參數表
Nickel plated copper PTFE insulated wire parameter table
|
導體標稱截面 mm 2 Condcutor section area |
導體結構 根數/單線標稱直徑mm Conductor structure Number/singe wire nominal diameter |
成品電線外徑mm Product outer diameter |
導體直流電阻 值Ω/km Conductor DC resistance |
成品電線重量 值kg/km The max.weight |
|
0.08 |
7/0.12 |
0.84±0.05 |
250 |
2.02 |
|
0.14 |
19/0.10 |
0.97±0.05 |
138 |
2.83 |
|
0.2 |
19/0.12 |
1.09±0.05 |
92.0 |
3.84 |
|
0.4/0.3 |
19/0.16 |
1.25±0.05 |
52.5 |
5.54 |
|
0.6/0.5 |
19/0.20 |
1.47±0.05 |
32.1 |
8.08 |
|
（0.75） |
19/0.23 |
1.66±0.05 |
24.3 |
10.2 |
|
1 |
19/0.26 |
1.73±0.05 |
20.0 |
12.1 |
|
1.2 |
19/0.28 |
1.91±0.08 |
16.4 |
14.9 |
|
（1.5） |
19/0.32 |
2.19±0.08 |
12.6 |
18.5 |
|
2 |
19/0.36 |
2.29±0.08 |
9.84 |
23.2 |
|
（2.5） |
37/0.30 |
2.72±0.10 |
7.37 |
31.5 |
|
3 |
37/0.32 |
2.82±0.10 |
6.50 |
36.3 |
|
（4） |
37/0.37 |
3.41±0.10 |
4.83 |
46.9 |
|
5 |
37/0.40 |
3.53±0.10 |
4.07 |
56.5 |
|
（6） |
37/0.45 |
4.25±0.10 |
3.26 |
69.5 |
|
8 |
133/0.29 |
5.18±0.10 |
2.28 |
99.7 |
